JCT Series Special Drying Oven

Keywords:
The air steam passes through only the surface of raw material in traditional chamber drier. The disadvantage is that the coefficient of raw material only in traditional level chamber dryer. The disadvantage is…
Order

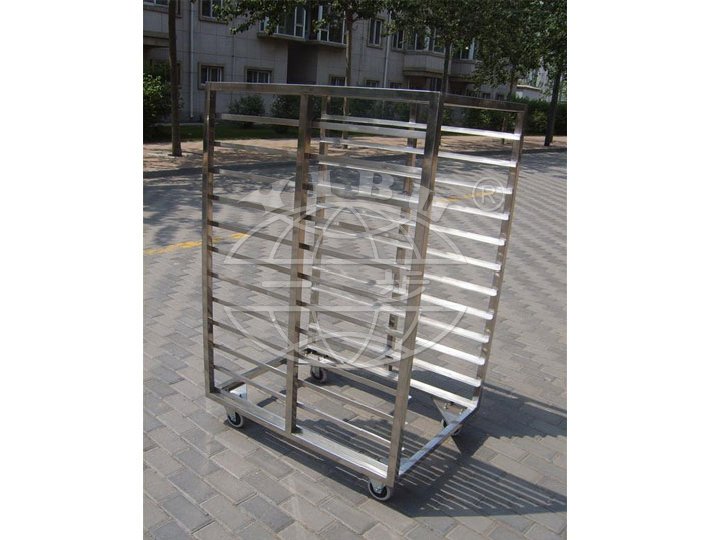

Detail Picture

JCT Series Special Drying Oven

 Principle
The air steam passes through only the surface of raw material in traditional chamber drier. The disadvantage is that the coefficient of raw material only in traditional level chamber dryer. The disadvantage is that the coefficient of heat transfer is low, the drying time is long, and it has defects in structure, can not be in conformity with the requirements of "GMP". In order to over-come the shortage, we designed and developed the penetrating air stream chamber dryer on the basis of absorbing foreign advanced technology. The principle of work is shown in the diagram below.
The fresh air is sucked by fan and then filtered by pre, post and sub-high efficiency to achieve 10,00 grade clean effect. Pass through steam heat exchanger the temperature of air rises to certain temperature. The heated air passes through flow distributor enters every layer, passes through each layer of raw material to be dried, humid air is exhausted through the inclined air channel under the drying tray. Part of the air circulates in the system.



Feature

1.To avoid pollution of product caused by circulation air, all circulation air passes through post or high efficiency filters. It is in conformity with the requirements of GMP.
2.Compared to traditional horizontal chamber dryer, its capacity of drying is larger. The thickness of raw materials each layer can be over three times.
3.Compared to traditional horizontal chamber dryer, its drying area is large and its efficiency is high. Its capacity of drying might be several times higher, the cost is reasonable.
4.Applicable to dry various kinds of granules and block of materials.
5.Easy in operation, convenient in parts exchanging, low in faults.
6.There are air filters at air inlet and air outlet. Therefore the dried raw materials can’t be polluted and the quality of product can’t be effected.
7.The hot source can adopt steam , oil or electric heater.

Flow Chart


Application
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Installation drawing

Technical parameters

item

spec

dry amount

of each

batch

power

steam

consumption

(kg/h)

area of

heat(㎡)

amout of

air

temperature

difference

between up

and low

size of

drying tray

quantity

drying

tray

overall

dimensions

weight
JCT-C-I 100 4 40~80 50 4000~7300 ±2 550*610*80 10 2350*1400*2280 2200
JCT-C-II 200 7.5 80~120 80 7200~15800 ±2 530*610*80 20 3100*1600*2700 4000



materials(kg) catalyst pharmceutical catalyst resin product of kiln amino acid
capacity(%) 200 260 370 350 100 200
initial moisture(%) 60 65 - 35 31 50
mass density(kg/L) 0.3 0.5 - 10 3 2
temperature of hot air (℃) 0.56 0.5 0.92 0.8 0.51 0.5
drying time(h) 60 80 400 150 100 80
drying area(㎡) 5 6 - 3 40 1
heat source 6.5 5.3 4.6 6.3 6.6 6.6
