FG Series Vertical Fluid Bed Dryer

Keywords:
Category: Fluid bed dryer
Principle The fresh air is filtered by the two or three filters and then enter into the heating system for heating . After heated , the hot air enter into the drying chamber and blow up the material in the bowl of the FBD…
Order
Detail Picture

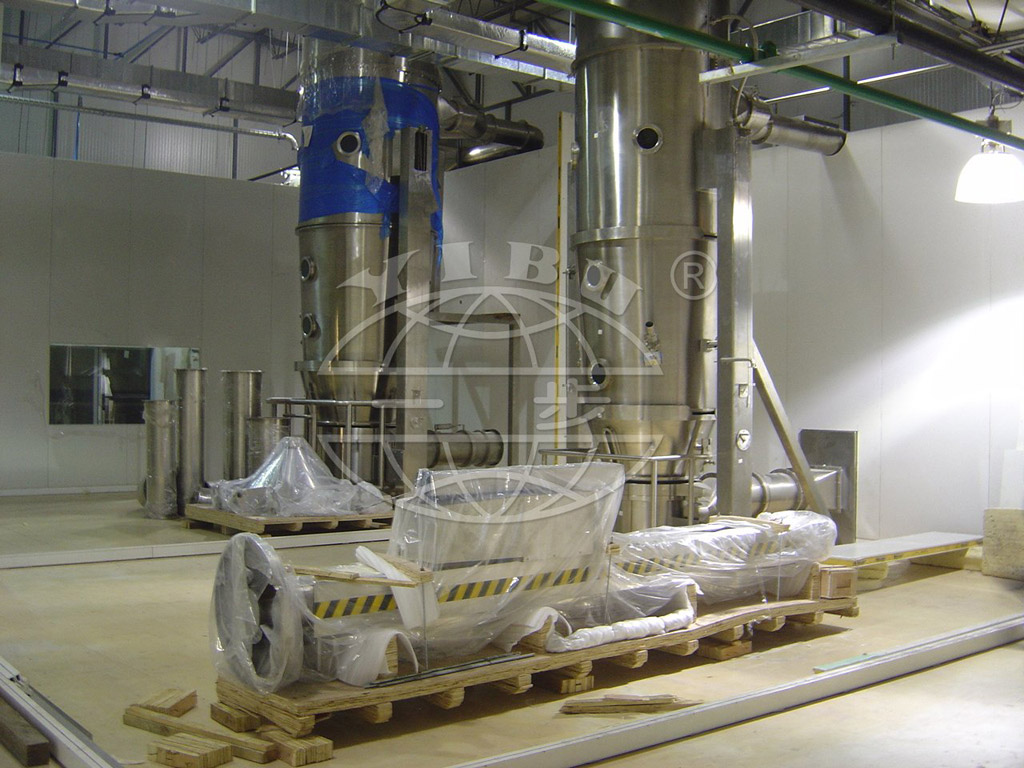

FG Series Vertical Fluid Bed Dryer(FBD)



Principle

The fresh air is filtered by the two or three filters and then enter into the heating system for heating . After heated , the hot air enter into the drying chamber and blow up the material in the bowl of the FBD and let the material into fluidization conditions .during this period , the material is dried . When customer use the machine , they can set the procedure and parameters according to the process requirements , and then start the machine .




The machine structures
1. INLET AHU
The inlet AHU consists of Primary filter(G4), Post filter (F8), high efficiency filter(H13 )and heater with accurate temperature control. The inlet air flow, speed and pressure is variable and controllable. For the heater , it can be steam radiator ,electrical heater , gas furnace and so on .
MAIN BODY STRUCTURE
The main body structure consists of bottom bowl, movable product bowl with trolley , fluidized chamber, expansion chamber/filter housing. The bottom bowl, product container and fluidized chamber are inflatable silicon gasket sealed with compress air inspection sensor to assure the reliable sealing.
3. PRODUCT FILTER
The double structured bag filter in two pieces (in case request, stainless steel filter available) is inflatable silicon gasket sealed between the expansion chamber inner surfaces with compress air inspection sensor to assure the reliable sealing. A dust sensor is mounted on the exhaust piping and interlocked from control sys to secure the product safety during processing stage.
4. EXHAUST AHU
The exhaust dust collection filter is optionally designed for protect environment.






Features

1.Fluid bed to achieve fast heat transmission of medium.
2.Seal negative pressure operation, there is no dust.
3.Because of using anti-static material as filter, it is safe in operation;
4.The equipment has no dead corner so it is easy to clean fully and there is no cross pollution;
5.It is in conformity with the requirements of GMP.

6. HMI and PLC control system, motor speed is controlled by VFD, and all process parameters can be recorded.





Overall drawing (Through-wall structure)

Application
The machine is main used for drying powder or granules from pharmaceutical, foodstuff, chemical and so on industries.







Optional item

1.2Bar &10Bar POWDER EXPLOSION
The 2bar and 10 bar powder explosion proof design is selectable to ensure the operator, equipment and environment safety with reliable grounding device.
2. Product charging by the lifting machine
3.Product charging by the vacuum transfer machine
4.Through-wall  structure for the machine in on request .

Technical parameters

Spec

3

5

30

60

120

200

300

500

1000

item

unit

container raw material

dim

mm

300

400

700

1000

1200

1400

1600

1800

2200

volume

L

12

22

100

220

420

670

1000

1500

2500

production capacity

min

Kg/batch

1.5

4

15

30

80

100

150

250

500

Max

Kg/batch

4

6

36

72

140

240

360

600

1100

consume of steam

Kg/batch

12

23

70

140

211

282

366

465

800

amount of compressed air

m3/min

0.3

0.3

0.3

0.6

0.6

0.9

0.9

0.9

1.5

power of fan

kw

2.2

4

5.5

11

18.5

22

30

45

75

temperature

Adjustable from ambient to 120

collection rate

%

>99

time of operation

min

15-30 (depends on material)

content of final product

%

~0.2 (depends on material)

noise

db

≤75

height of main machine

mm

2100

2300

2500

3000

3300

3800

4000

4800

6200
