WLDH Series Horizontal Ribbon Mixer (Ribbon Mixer)

Keywords:
Category: Mixer
FeaturesWLDH series Horizontal Ribbon mixer (ribbon mixer, ribbon mixing equipment , ribbon blender) has bellow features:1.Big coefficient of …
Order
Detail Picture

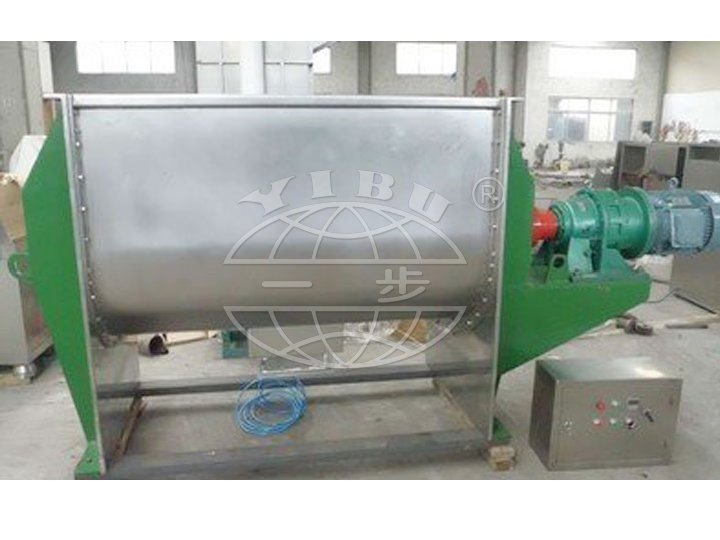

WLDH Series Horizontal Ribbon Mixer (Ribbon mixer, Ribbon mixing equipment , Ribbon blender)





Features
WLDH series Horizontal Ribbon mixer (ribbon mixer, ribbon mixing equipment , ribbon blender)has bellow features
1.Big coefficient of loading, small occupied area.
2.It is difficult to clean when it is used to mix viscous or adhesive material.
3.The feeding system for the mixer is very flexible , it can be designed based on the customer site .
4.Control system has more choices ,such as push button ,HMI+PLC and so on
5.For the feeding system , it can choose vacuum feeding system or screw feeding system or other kinds of feeding system .



Principle
This machine is composed of container,screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the centre from two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to from convection mixing.



Applications

WLDH Series Horizontal Ribbon mixing machine (ribbon mixer, ribbon mixing equipment , ribbon blender) is generalIy used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently

Technical parameters


spec

WLDH -0.1

WLDH -0.3

WLDH -0.5

WLDH -1

WLDH -1.5

WLDH -2

WLDH -3

WLDH -4

WLDH -6

WLDH -8

WLDH- 10

mixed amount/batch kg

30-50

100- 150

200- 300

400- 600

600- 900

800- 1200

1200- 1800

1600- 2400

2400- 3600

3200- 4800

4000- 6000

power kw

1.5-4

3-5.5

4-11

7.5-15

11-18.5

15-22

18.5-30

22-37

37-55

37-55

45-75

weight kg

300

500

900

1400

1900

2500

3100

3600

5300

6800

7800
