QPG Series Air Stream Spray dryer(drier)

Keywords:
Category: Spray dryer
The clean air is heated and entered into drying tower; the raw material inside the tower is atomized into fine mist through muzzles of two or three flows. The raw materials carry out heat exchange with the hot air rapidly……
Order

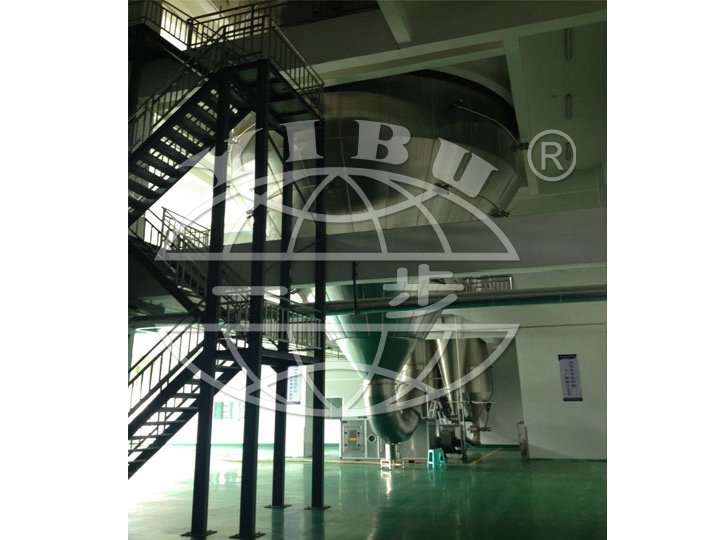

Detail Picture

QPG Series  Air Stream Spray dryer(drier)

Principle

The clean air is heated and entered into drying tower; the raw material inside the tower is atomized into fine mist through muzzles of two or three flows. The raw materials carry out heat exchange with the hot air rapidly to evaporate the moisture (solvent) in the raw materials. The moisture or solvent is discharged accompany with hot air, and then the power product is produced.



Flow Chart

Features
1.It is good for raw materials that are large in viscosity, paste materialWhich the other equipment cannot replace it.
2.More varieties and wide application in drying with lower temperature.
3.The nozzle is simple in structure, convenient in maintenance and low cost in operation.
4.For the heating system for the machine , it is very flexible. we can configure it based on the customer site conditions  such as steam ,electricity , gas furnace and so on , all of them we can design it to match our spray dryer.
5.Control system has more choices, such as push button, HMI+PLC and so on

Technical parameters


无标题文档

parameters\ spec

5

25

50

100

150

200

amount of evaporation
Kg/h

△t=150℃-90℃

1.5

7.5

15

30

45

60

△t=200℃-100℃

2.5

12.5

25

50

75

100

△t=250℃-100℃

3.75

18.75

37.5

75

112.5

150

△t=300℃-100℃

5

25

50

100

150

200

△t=350℃-110℃

6

30

60

120

200

240

Compressed Air  M3/min

0.9

0.9

1.1

1.5

2.7

3.4

pressure of air Mpa The compressed air pressure

0.4

0.6

0.7

Heating method

electricity,electricity+steam,coal(oil)combustion furnace

Heat consumption  104Kcal/h

1

5

10

20

30

40

Fan power  Kw

0.75

4

7.5

11

15

18.5

Notes

(1)if the equipment is bigger than 200, it might be designed and manufactured in accordance with the requirements of customers.
(2)The power of fan is suitable of standard flow chart. If adding the cloth bag to remove dust or recover solvent, it should be increased.
(3)Above mentioned parameters are only for reference , it should upon the real configuration based on the raw material property itself .
